한초우 존 외부 포장용 기계 주식회사
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | ZON PACK |
| 인증: | CE Certification |
| 모델 번호: | ZH-DM300 |
| 최소 주문 수량: | 1개 세트 |
| 가격: | 5500-5700USD per set |
| 포장 세부 사항: | 나무 상자 |
| 배달 시간: | 20-25 작업 일 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온 |
| 공급 능력: | 달 당 199개 세트 |
| 이름: | 식품 등급 금속 탐지기 | 모델: | ZH-DM300 |
|---|---|---|---|
| 벨트 속도: | 25m/min | 창 폭: | 300 밀리미터 |
| 구조 물자: | SUS304 | 전원 공급기: | 220V/110V 50/60Hz |
| 경보: | 정지 또는 리젝터 | 제파기: | 에어블로우, 추진기, 변위기 |
| 강조하다: | 300mm conveyor metal detector equipment,SUS304 conveyor metal detector equipment,300mm food grade metal detector |
||

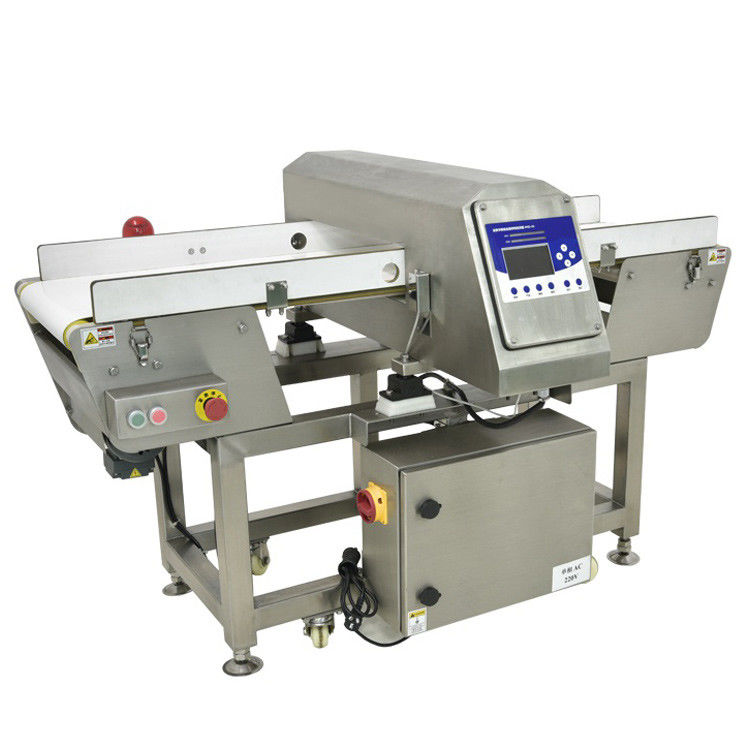

New technology conveyor belt metal detector machine for food security detection
Technical Feature
1. The smallest footprint, with good metal free regional characteristics, thereby reducing the length of the combination of equipment;
production line space requirements to minimum.
2. The metal detector and the weight detector function integrated in a simple cantilever frame, convenient and effective installation to the existing workshop, so that the lowest cost of installation.
3. High-speed digital signal processing devices and intelligent algorithms to improve the detection accuracy and stability.
In the case of t·he use of cantilever structure, mainly made of stainless steel.
4. The device in the advanced weighing controller allows users to improve their processing efficiency and profitability, the production line operators from the statistical information display at any time to understand the performance of the production line and make the necessary adjustments to ensure the highest efficiency of the production line.
5. The LCD screen display, Chinese and English menu screen, easy to achieve man-machine dialogue operation.
6. a variety of feedback options to meet the needs of a variety of feeding operations.
7. with memory function, salable storage of multi-products detection parameters.
8. Simple and removable rack, user-friendly cleaning.
9. The special design of the conveyor belt, to avoid the conveyor belt deviation.
10. The use of high-performance sensors and integrated motor, the performance is further improved.
| Technical Specification | |||
| Model | ZH-DM | ||
| Type | 3008/3012/3015/3018 | 4008/4012/4015/4018 | 5015/5020/5025/5030 |
| Window Width | 300mm | 400mm | 500mm |
| Window Height | 80/120/150/180mm | 80/120/150/180mm | 200/250mm |
| Sensitivity for Fe | Φ0.7/0.7/0.7/0.8mm | Φ0.7/0.7/0.7/0.8mm | Φ0.8/1/1.2/1.5mm |
| Sensitivity for SS | Φ1.2/1.5/1.5/2.0mm | Φ1.2/1.5/1.5/2.0mm | Φ2.0/2.0/2.5/3.0mm |
| Belt Width | 280mm | 360mm | 460mm |
| Max Weight | 5Kg | 10kg | 50kg |
| Monitor | LCD | ||
| Belt Material | Food grade PVC, Options for PU and chain plate | ||
| Belt Speed | 25m/min | ||
| Alarm | Stop or rejector | ||
| Rejector | Air blow, Pusher, Shifter | ||
| Power Parameter | 220V/110V 50/60Hz | ||
| Protection Level | IP30/IP54/IP66 | ||
| Frame Material | SUS304 | ||
Application
Metal Detector For Food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms,
drinks ,fruits , Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and
non-ferrous and other metal objects , the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material·Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu ,
easy to operate touch screen.

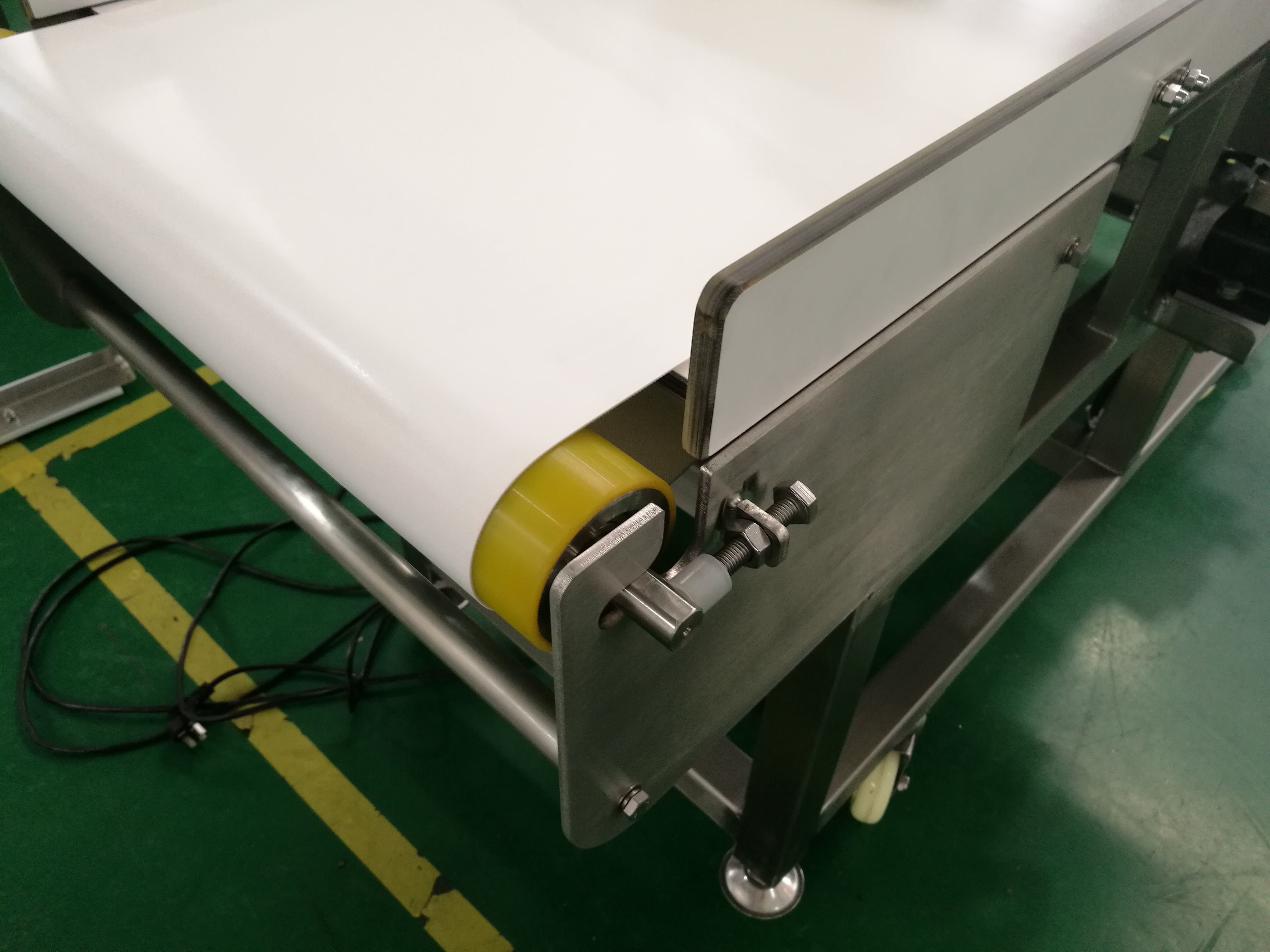

Machine Details

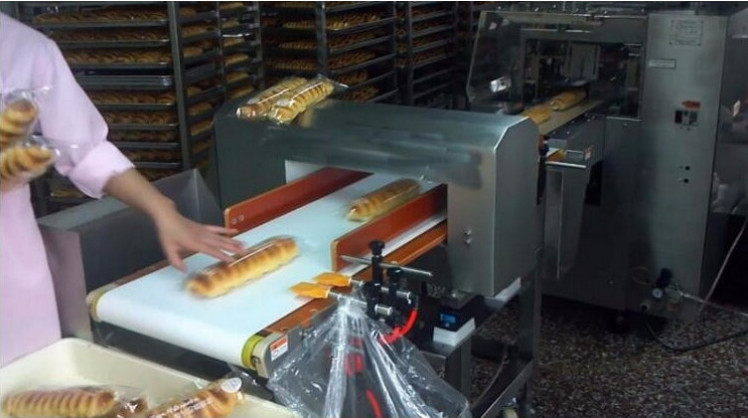

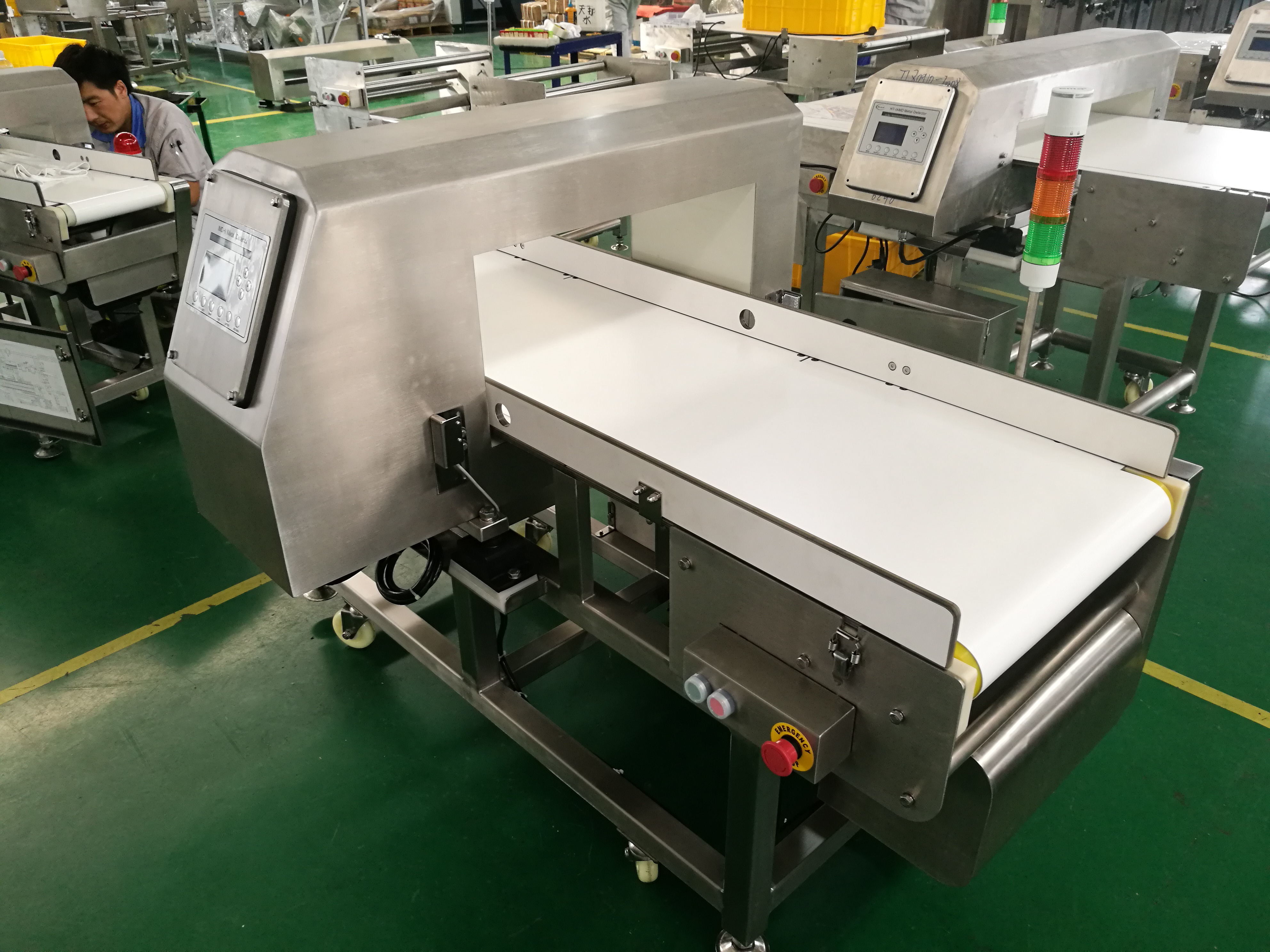

Our Cases
Our Partners
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are dedicated
to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
