한초우 존 외부 포장용 기계 주식회사
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | ZON PACK |
| 인증: | CE Certification |
| 모델 번호: | ZH-BL10 |
| 최소 주문 수량: | 1개 세트 |
| 가격: | 22000-28000USD per set |
| 포장 세부 사항: | 나무 상자 |
| 배달 시간: | 25-30 작업 일 |
| 지불 조건: | L/C, T/T, D/P, 서부 동맹 |
| 공급 능력: | 달 당 199개 세트 |
| 이름: | 자동 팽화 식품 곤포기 | 그것은 할 수 있습니다: | 필로우 백, 거싯대, 백 펀칭, 연결 가방 |
|---|---|---|---|
| 충전물: | 층상 필름, 폴리에틸렌필름 | 감시자: | 7 인치 칼라 터치 스크린 |
| 정확도: | +/-0.1g-1.5g | 옵션 기기: | 연속적인 가방 장치, 홀 펀칭 장치, 기체 봉입, 거싯된 장치 |
| 패킹 속도: | 30-70은 / 민을 자루에 넣습니다 | 힘: | 220V 50/60 Hz 2.2KW |
| 하이 라이트: | 316SS 팽화 식품 곤포기,1.5g 팽화 식품 곤포기,316SS 바삭바삭한 곤포기 |
||
Food grade 304SS and 316SS for option chips packing machine price
Technical Feature
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making,
measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better
appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
| Technical Specification | |
| Model | ZH-BL10 puffed food packing machine |
| Packing Speed | 30-70 Bags/Min |
| System Output | ≥8.4 Ton/Day |

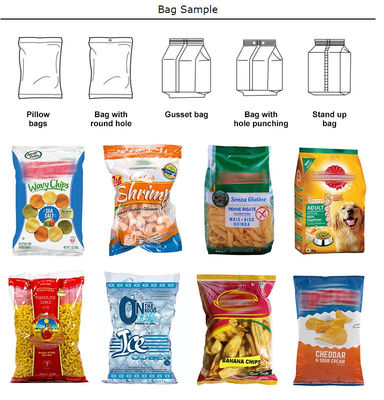

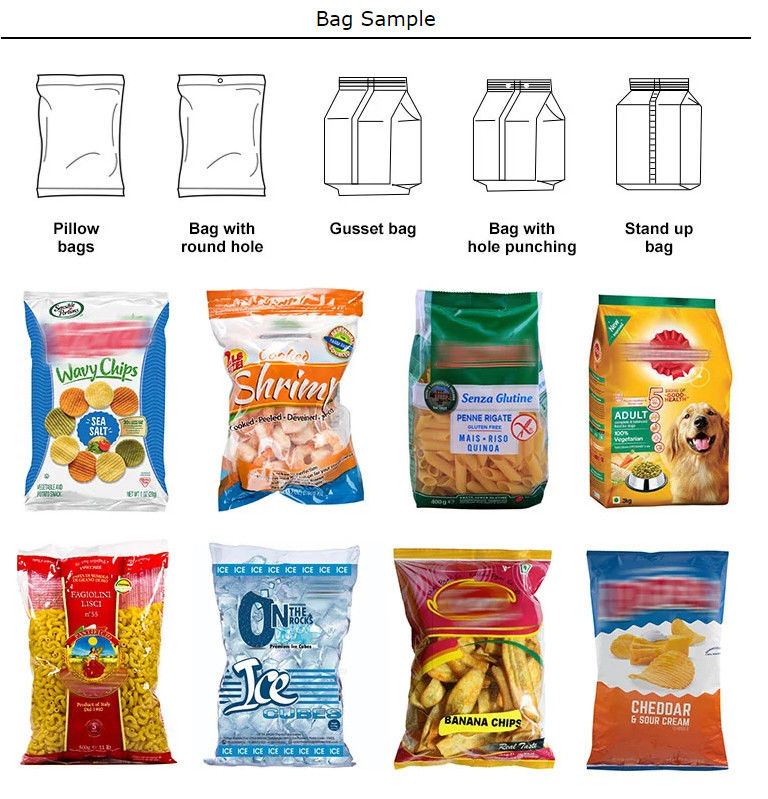

| Bag making mode | Pillow bag, Gusset bag , Punching bag, Connecting bag |
| Packing Material | laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET;PE film |
| Range of measuring (g) | 5-5000 |
| Thickness of film (mm) | 0.04-0.10 |
| Power Parameter | 220V 50/60Hz 2.2KW |
| Bag size(mm) | VFFS 320: (W) 60-150 (L)50-200 VFFS 420: (W) 60-200 (L)60-300 VFFS520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS720: (W) 120-350 (L)100-450
VFFS1050:(W) 200-500 (L)100-800 |
| Multihead weigher model | 10 heads 14 heads 20 heads weigher |

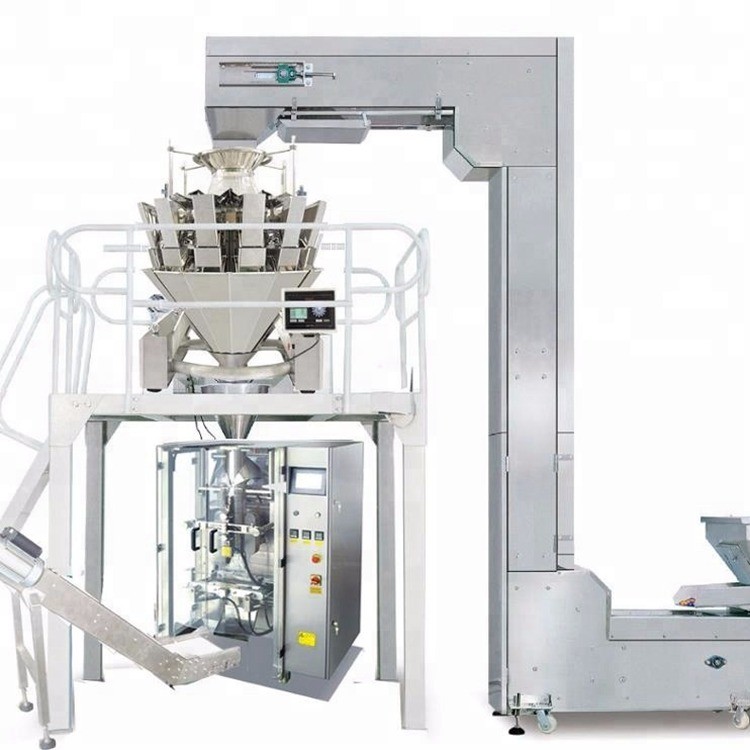

Whole packing line:
1. Infeed bucket conveyor:
Feeds the products to the elevator and transport them to multi-head weigher
2. Multihead weigher:
Weighing and filling materials to packing machine
3. Working platform:
Support multihead weigher.
4. Vertical packing machine:
Pack the product with high speed, and date printed, sealing-off and bag cutting is completed automatically.
5. Finishe bag conveyor:
Convey the finished bag to rotary table.
6. Rotary table:
For finished bag collecting.
Application of Machine
Adaptable to most granule products, whose sizes are ranged from 0.5mm to 100mm, like: sugar, salt, detergent powder,
Confectionery, peanuts, snack, chips, nuts, jelly candies, flakes, cookies, bakery, coffee beans, pet foods, or non-food products
like metal parts, etc.
Machine Details
Our customers
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive service to our customers.We are
dedicated to providing customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3.Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.
4.The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted.
